NSREF3125：High-precision, Low-tempco, Low-noise, Low-power Voltage Reference

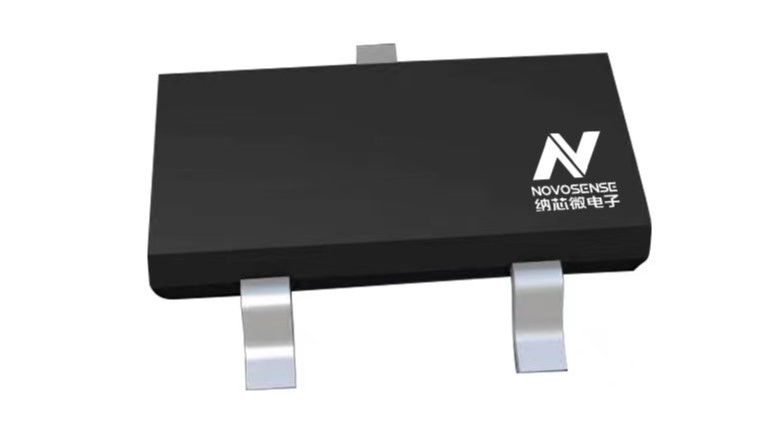

The NSREF3125 is a family of precision, low power, low dropout, series voltage references available in the tiny 3-pin SOT23 package. The NSREF3125's small size and low power consumption make it ideal for portable and battery-powered applications. The NSREF3125 does not require a load capacitor, but is stable with any capacitive load and can sink or source up to ±10 mA of output current. Unloaded, the NSREF3125 can operate on supplies down to 1 mV above the output voltage. All models are specified for the wide temperature range of -40°C to +125°C.
Product Features
• Auto and industry grade
• Supply voltage: 1.8V~5.5V
• Low dropout voltage: 1mV
• Initial accuracy: 0.2%
• Temp drift: 5ppm/℃ Type, 15ppm/℃ Max
• Long-term drift: 100ppm(0 to 1000h at 35℃)
• Output noise@2.5V: 22μVpp
• Quiescent current @2.5V : 140 μA
• Line regulation @2.5V :20ppm/V
• High output current:10mA
• -40℃ to 125℃
Application
• Industry automation
• Field instruments
• SOLAR/UPS/BMS
• Smart grid
• Portable instruments
• Medical
Functional Block Diagram
