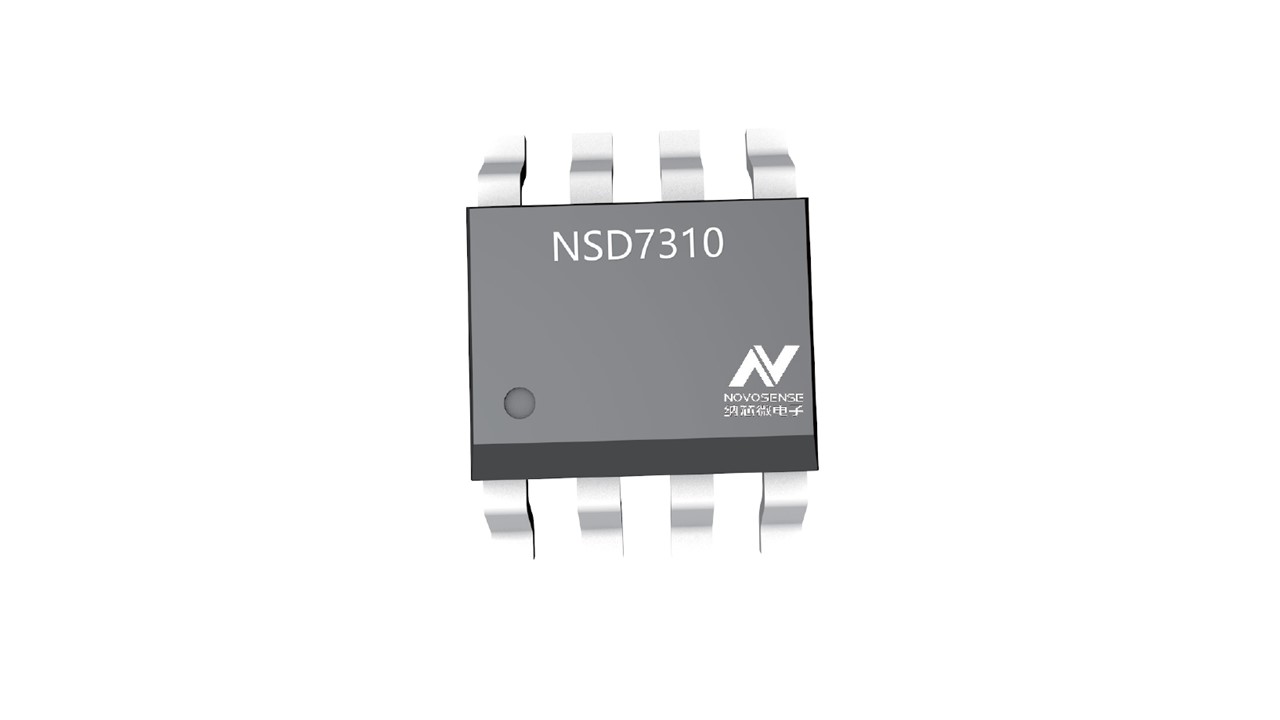

40-V, 3.6-A H-Bridge Brushed DC Motor Driver
NSD7310 is a brushed DC motor driver IC. The IC has integrated N-MOSFET and provides all-round protection for the power level, including power supply undervoltage protection, overcurrent protection and overtemperature protection. The product can provide 3.6A peak current and supports PWM current regulation, effectively reducing the need for input capacitance during motor startup and stalling.
Product Features
• Wide operation voltage range: 5V-36V (withstand voltage of 40V)
• On-resistance（HS + LS）520mΩ
• Peak current 3.6A
• Supporting current modulation
• Undervoltage protection
• Overcurrent protection
• Over-temperature protection
• Operating temperature: -40°C~125°C
Application
• Home appliances
• Floor mopping robot
• Brushed DC motor
• Electrical equipment
Functional Block Diagram
