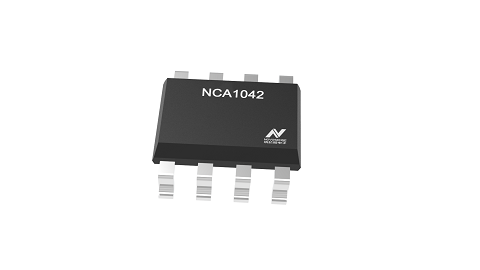

Fault Protected High-Speed CAN FD Transceiver with Standby Mode
The NCA1042 is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The NCA1042 implements the CAN physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5. This implementation enables reliable communication in the CAN FD fast phase at data rates up to 5 Mbit/s. The NCA1042 provides thermal protection and transmit data dominant time out function.
Product Features
• Fully compatible with the ISO11898-2 standard
• I/O voltage range supports 3.3V and 5V MCU
• Power supply voltage
VIO: 3V to 5.5V
VCC: 4.5V to 5.5V
• Bus fault protection of -70V to +70V
• Bus common-mode voltage of -30V to +30V
• Transmit data (TXD) dominant time out function
• Bus dominant time out function in standby mode
• Very low-current Standby mode with wake-up capability
• Over current and over temperature protection
• Data rate: up to 5Mbps
• Low loop delay: <250ns
• Operation temperature: -40℃ to +125℃
• RoHS compliant
Application
• CAN bus standards such as CANopen, DeviceNet, NMEA2000, ARNIC825, ISO11783 and CANaerospace
• Highly loaded CAN networks down to 10 kbps networks using TXD DTO
• Industrial automation, control, sensors, and drive systems
• Building, security, and climate control automation
Functional Block Diagram
