Fault Protected High-Speed CAN FD Transceiver with Standby Mode
The SPA1042 is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The SPA1042 implements the CAN physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5. This implementation enables reliable communication in the CAN FD fast phase at data rates up to 5 Mbit/s. The SPA1042 provides thermal protection and transmit data dominant time out function.
Product Features
Fully compatible with the ISO11898-2 standard
Ideal passive behavior to the CAN bus when the supply voltage is off
I/O voltage range supports 3.3V and 5V MCU
Power supply voltage
VIO: 2.8V to 5.5V
VCC: 4.5V to 5.5V
Bus fault protection of -70V to +70V
Bus common-mode voltage of -30V to +30V
Transmit data (TXD) dominant time out function
Bus dominant time out function in standby mode
Very low-current Standby mode with wake-up capability
Over current and over temperature protection
Data rate: up to 5Mbps
Low loop delay: <250ns
Operation temperature: -40℃ to +125℃
RoHS & REACH compliant
Application
CAN 总线标准，如 CANopen、DeviceNet、NMEA2000、ARNIC825、ISO11783 和 CANaerospace
多负载 CAN 网络，速率可低至 10 kbps
LOL雷竞技 、控制、传感器和驱动系统
楼宇、安全和气候控制自动化

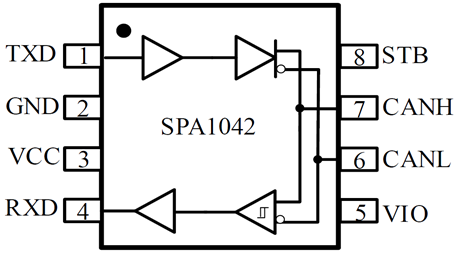

Functional Block Diagram
